We illustrate fitting Brass’s relational logit model using data from the Seychelles.
Here’s a small dataset with the observed survival function for
Seychelles males in 1971-75. We also include Brass’s standard for
convenience. (Alternatively, the Brass standard is available in five and
single-year forms in Stata files in the datasets section, so you can
merge on age; the files are called Brassrlm1.dta and
Brassrlm5.dta.)
. infile age lx ls using /// > https://grodri.github.io/datasets/seychelles.dat, clear (16 observations read)
> sc <- read.table("https://grodri.github.io/datasets/seychelles.dat",
+ header = FALSE, col.names = c("age","lx","ls"))
We generate Brass logits and plot the logits of the observed and standard survival functions to see if the relationship is linear.
. gen yx = 0.5*log( (1-lx)/lx) . gen ys = 0.5*log( (1-ls)/ls) . twoway (scatter yx ys) (lfit yx ys), name(a, replace) /// > ytitle(observed) xtitle(standard) title(Logit) legend(off)
> library(dplyr)
> library(ggplot2)
> sc <- mutate(sc, yx = 0.5*log( (1-lx)/lx), ys = 0.5*log( (1-ls)/ls))
> lf <- lm(yx ~ ys, data=sc)
> sc$yfit <- fitted(lf)
> g1 <- ggplot(sc, aes(x = ys, y = yx)) + geom_point() +
+ geom_line(aes(x = ys, y = yfit)) + ggtitle("Logit")

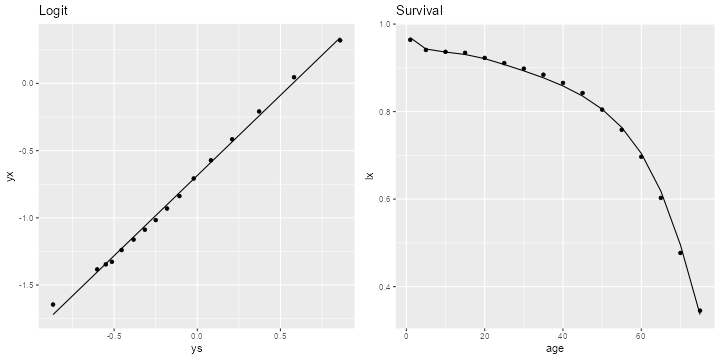

The fit is not bad at all. Here are the parameter estimates, and the fitted survival, which we plot on a second panel:
. reg yx ys
Source │ SS df MS Number of obs = 16
─────────────┼────────────────────────────────── F(1, 14) = 4557.24
Model │ 4.5875726 1 4.5875726 Prob > F = 0.0000
Residual │ .014093195 14 .001006657 R-squared = 0.9969
─────────────┼────────────────────────────────── Adj R-squared = 0.9967
Total │ 4.60166579 15 .30677772 Root MSE = .03173
─────────────┬────────────────────────────────────────────────────────────────
yx │ Coefficient Std. err. t P>|t| [95% conf. interval]
─────────────┼────────────────────────────────────────────────────────────────
ys │ 1.193756 .0176834 67.51 0.000 1.155829 1.231683
_cons │ -.6851507 .0082767 -82.78 0.000 -.7029025 -.6673989
─────────────┴────────────────────────────────────────────────────────────────
. predict yf
(option xb assumed; fitted values)
. gen lf = 1/(1+exp(2*yf))
. twoway (scatter lx age) (line lf age), name(b, replace) ///
> ytitle(lx) title(Survival) legend(off)

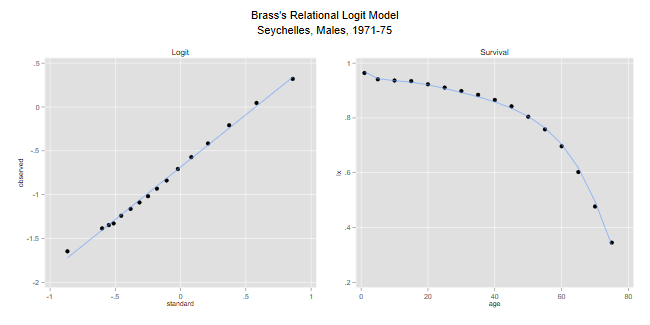

. graph combine a b, title(Brass's Relational Logit Model) ///
> subtitle("Seychelles, Males, 1971-75") xsize(6) ysize(3)
. graph export seym71rlm.png, replace
file seym71rlm.png saved as PNG format
> library(gridExtra)
> sc <- mutate(sc, lfit = 1/(1 + exp(2 * yfit )))
> g2 <- ggplot(sc, aes(x = age, y = lx)) + geom_point() +
+ geom_line(aes(x = age, y = lfit)) + ggtitle("Survival")
> g <- arrangeGrob(g1, g2, ncol=2)
> ggsave("seym71rlmr.png", plot=g, width=10, height=5, dpi=72)
The parameter estimates could be used, for example, to generate a single-year life table
. drop _all
. use https://grodri.github.io/datasets/brassrlm1
(Brass Relational Logit Model Standard - Manual X)
. predict yf
(option xb assumed; fitted values)
. gen lf = 1/(1+exp(2*yf))
. list age lf in 1/5
┌────────────────┐
│ age lf │
├────────────────┤
1. │ 1 .9689398 │
2. │ 2 .9559698 │
3. │ 3 .9495305 │
4. │ 4 .9455815 │
5. │ 5 .9430202 │
└────────────────┘
> library(haven)
> rlm1 <- read_dta("https://grodri.github.io/datasets/brassrlm1.dta")
> yfit1 <- predict(lf, newdata=rlm1)
> cbind(1:5, 1/(1 + exp(2 * yfit1[1:5])))
[,1] [,2]
1 1 0.9689398
2 2 0.9559698
3 3 0.9495305
4 4 0.9455815
5 5 0.9430201
The relational logit model doesn’t always fit well. Typically, lack of fit is noticed at the young and old ages. Zaba(1979) proposed a 4-parameter extension that incorporates two patterns of deviations from the standard and improves the R-squared to 0.9997. Ewbank, De Leon and Stoto (1983) proposed an alternative extension that uses different power transformations at young and old ages, converging to the logit as the powers approach 0. They also proposed a small revision of the standard below age 15. Both extensions are non-linear in the additional parameters and thus hard to fit, although the authors provide ingenious approximate estimation procedures. More recently Murray et al (2003) proposed a modified system that starts from the logit transformation but adds two sets of age-specific coefficients which adjust for under-five and adult survivorship.
For further discussion of model life tables, including the Princeton regional series of Coale, Demeny and Vaughan (1983) and the log-quadratic system of Wilmoth et al. (2012), see Tools for Demographic Estimation.
